IsFoundIn
IsFoundIn (Zone, SearchElement, Index, Direction, ElementFindZone, ElementToFind, Width, Height)
|
|
|
|
|
|
|
Description
Search for an element and check if an element related to it exists . The direction can be UP, DOWN, LEFT or RIGHT.
Parameters
-
Zone - Select Zone
-
SearchElement - Search Element
-
Index - Element index
-
Direction - Direction to analyze
-
ElementFindZone - Find Element Zone
-
ElementToFind - Element to Find
-
Width - Width of the search ("0" indicates until the end/start of the window)
-
Height - Height of the search ("0" indicates until the end/start of the window)
Usage
In the following example, we will try to find the ‘Make Payment’ button using the ‘Mortgage Request’ button.

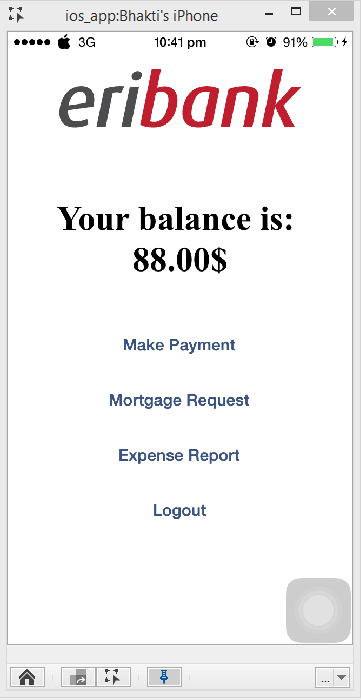

Step 1: Login and navigate to the Make Payment page.

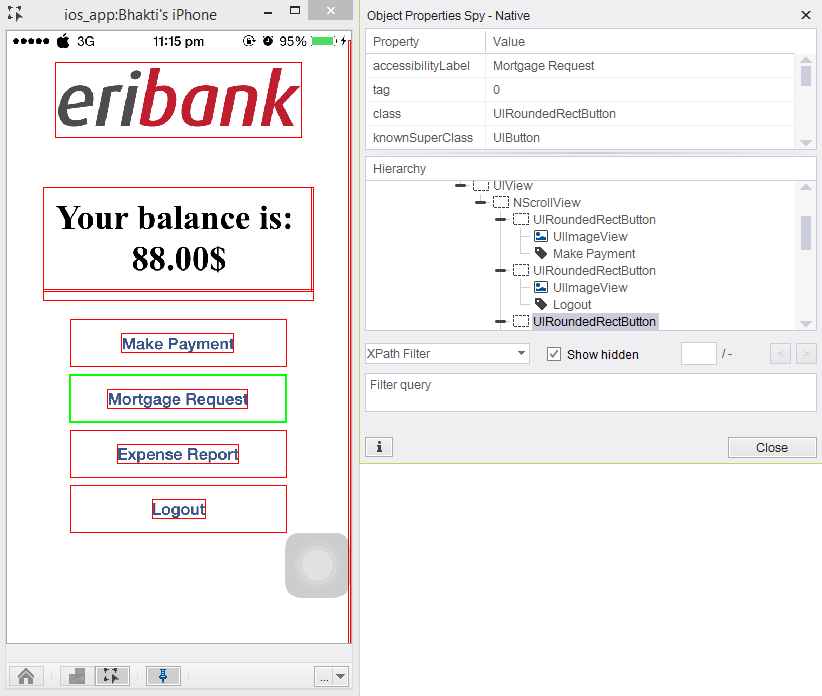

Step 2: Identify the properties of the Mortgage Request button.

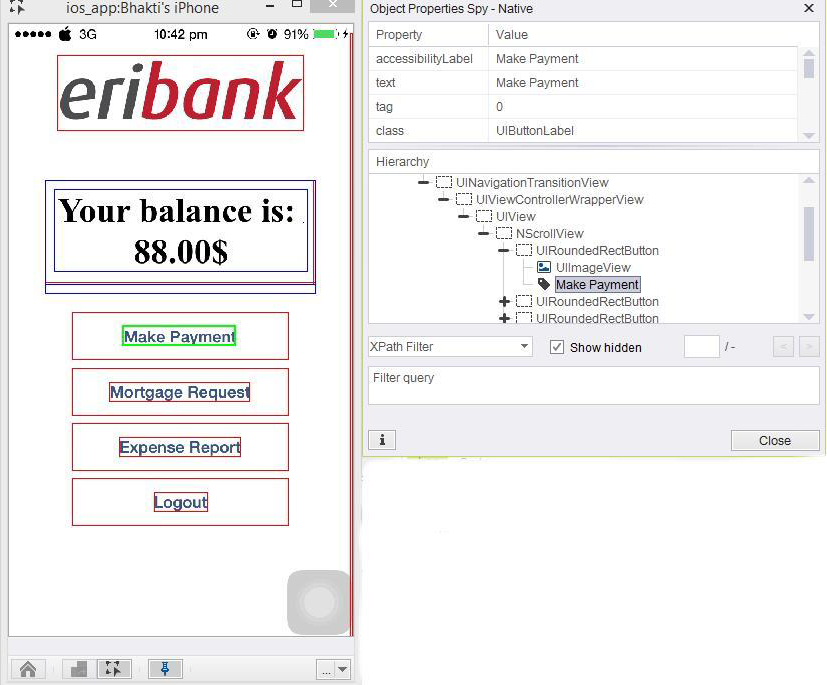

Step 3: Now find the properties of the 'Make Payment' Button.

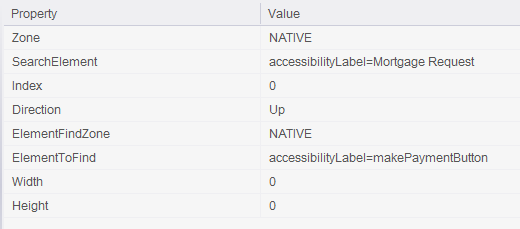

Step 4: In the script area type the following properties:

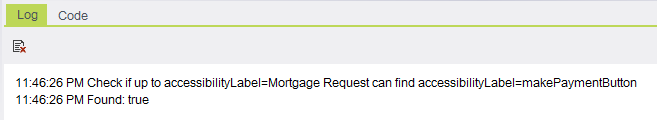

Result:
Code Examples
client.isFoundIn("NATIVE", "accessibilityLabel=Mortgage Request", 0, "Up", "NATIVE", "accessibilityLabel=makePaymentButton", 0, 0)client.IsFoundIn("NATIVE", "accessibilityLabel=Mortgage Request", 0, "Up", "NATIVE", "accessibilityLabel=makePaymentButton", 0, 0)client.IsFoundIn ( "NATIVE", "accessibilityLabel=Mortgage Request", 0, "Up", "NATIVE", "accessibilityLabel=makePaymentButton", 0, 0 )Reportself.client.isFoundIn("NATIVE", "accessibilityLabel=Mortgage Request", 0, "Up", "NATIVE", "accessibilityLabel=makePaymentButton", 0, 0)$client->isFoundIn("NATIVE", "accessibilityLabel=Mortgage Request", 0, "Up", "NATIVE", "accessibilityLabel=makePaymentButton", 0, 0)
