ClickIn
void clickIn (zone, searchElement, index, direction, clickElementZone, clickElement, clickElementIndex, width, height, clickCount)
|
|
|
|
|
|
|
Description
Search for an element and click on another element in reference to it.
Parameters
-
Zone: Select Zone
-
Element: Select Element
-
Index: Selected Element index
-
Direction: Direction to analyze - DOWN, UP, LEFT, RIGHT, INSIDE
-
ClickElementZone: Select the Zone for the Element to click
-
ClickElement: Select the Element to click
-
clickElementIndex: Selected element to click index
-
Width: Width of the search in pixels ("0" indicating until the end/start of the window)
-
Height: Height of the search in pixels ("0" indicating until the end/start of the window)
-
clickCount: Number of clicks
Usage
When cannot identify the element to click directly, you can use another element as a reference.

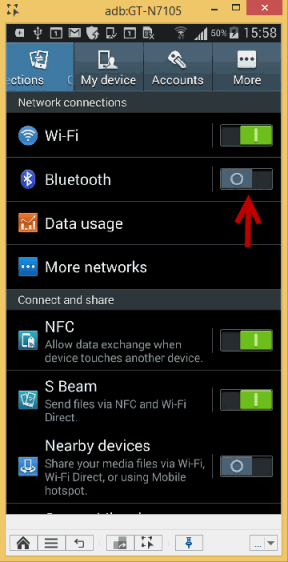

Scenario: In the following example we will click the switch next to the "Bluetooth" label.
Parameters:
-
Zone: set to be "NATIVE"
-
SearchElement: set to "xpath=//*[@text='Bluetooth']"
-
Index: set to "0"
-
Direction: set to "Right"
-
ClickElementZone: set to "NATIVE"
-
ClickElement: set to "xpath=//*[@class='android.widget.Switch']"
-
ClickElementIndex: set to "0"
-
Width: set to "0"
-
Height: set to "0"
-
ClickCount: set to “1”

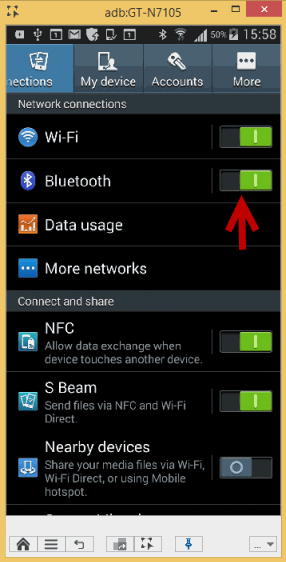

Result:
Value of the switch is now on.
Code Examples
client.clickIn("NATIVE", "xpath=//*[@text='Bluetooth']", 0, "Right", "NATIVE", xpath=//*[@class='android.widget.Switch']", 0, 0, 0, 1);client.ClickIn("NATIVE", "xpath=//*[@text='Bluetooth']", 0, "Right", "NATIVE", "xpath=//*[@class='android.widget.Switch']", 0, 0, 0, 1);client.ClickIn "NATIVE", "xpath=//*[@text='Bluetooth']", 0, "Right", "NATIVE", "xpath=//*[@class='android.widget.Switch']", 0, 0, 0, 1Reportself.client.clickIn3("NATIVE", "xpath=//*[@text='Bluetooth']", 0, "Right", "NATIVE", "xpath=//*[@class='android.widget.Switch']", 0, 0, 0, 1)$client->clickIn3("NATIVE", "xpath=//*[@text='Bluetooth']", 0, "Right", "NATIVE", "xpath=//*[@class='android.widget.Switch']", 0, 0, 0, 1);
