ElementSwipeWhileNotFound
(String Zone, String SearchElement, String Direction, int Offset, int SwipeTime, String ElementFindZone, String ElementToFind, int ElementToFindIndex, int Delay, int Rounds, Boolean Click)
|
|
|
|
|
Description
Swipe inside a component to search for an element or text.
Parameters
-
Zone - Zone of the container element
-
SearchElement - The container element identifier
-
Direction - Direction to swipe
-
Offset - Swipe offset
-
Swipe Time – Time for the swipe action
-
Element to find Zone - Zone of the sought element
-
Element to find - The sought element identifier
-
Element to Find Index – The sought element’s index (i.e., the number of times the element appears after the first appearance minus two). Index=0 refers to the first appearance of the element; Index=1 refers to the second appearance of the element, etc.
-
Delay - Time to wait before sending a command (in milliseconds)
-
Rounds - Maximum swipe rounds
-
Click - Click the found element if TRUE
Usage

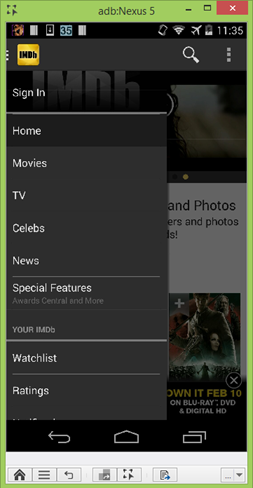

Scenario: In this example, we will use the ElementSwipeWhileNotFound command to scroll down in the IMDB application menu, and select the "History" option.
Note: The list doesn’t cover the entire screen. So using SwipeWhileNotFound command may not work on some devices.
Parameters:
-
Component Zone: Will be set to NATIVE
-
Component Element: will be set to id=nav_drawer (This will identify the menu object itself, where the swipe action is going to be performed).
-
Direction: Down
-
Offset: 0
-
Swipe Time: 2000
-
Element Find Zone: NATIVE
-
Element To Find: will be set to text=History (The command will swipe the menu container until this object is found).
-
Element To Find Index: 0
-
Delay: 1000
-
Rounds: 5
-
Click: true (will click the "History" object once it is found).
Result:

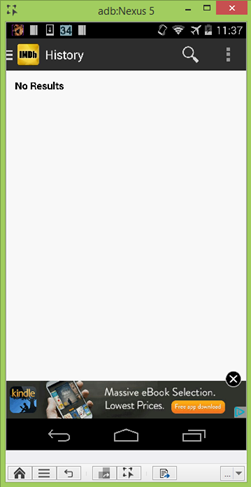

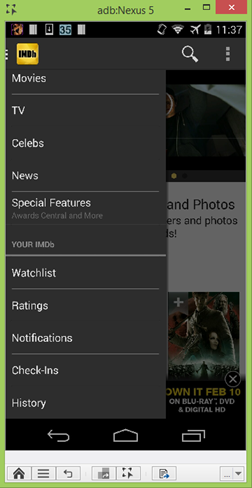

List will be scrolled to the bottom until Label History is found.
Once found it will be clicked
Code Examples
if(client.elementSwipeWhileNotFound("NATIVE", "id=nav_drawer", "Down", 0, 2000, "NATIVE", "text=History", 0, 1000, 5, true)){// If statement}if(client.ElementSwipeWhileNotFound("NATIVE", "id=nav_drawer", "Down", 0, 2000, "NATIVE", "text=History", 0, 1000, 5, true)){// If statement}If StrComp (client.ElementSwipeWhileNotFound ( "NATIVE", "id=nav_drawer", "Down", 0, 2000, "NATIVE", "text=History", 0, 1000, 5, true ), "True") = 0 Then Report 'If statementElse ReportEnd Ifif(self.client.elementSwipeWhileNotFound("NATIVE", "id=nav_drawer", "Down", 0, 2000, "NATIVE", "text=History", 0, 1000, 5, True)):# If statementpassif($client->elementSwipeWhileNotFound("NATIVE", "id=nav_drawer", "Down", 0, 2000, "NATIVE", "text=History", 0, 1000, 5, 1)){# If statement}
