ElementListSelect

Description

Select an element within a list (first making the element visible)

Parameters

• ListLocator: List locator

• ElementLocator: Element locator (NOTE: this variable does not support XPath queries)

• Index: Element index

• Click: If TRUE then click once found

Usage

Scenario: In the following example we will use the EriBank application to select an element from the country list.

Step 1: Login to the EriBank application.

Step 2: Click the Make Payment button.

Step 3: Click Select button.

The country list will be displayed on the screen.

Step 4: Set the elementListSelect command properties.

How to find the list locator Native properties?

Usually it can be found behind its components properties:

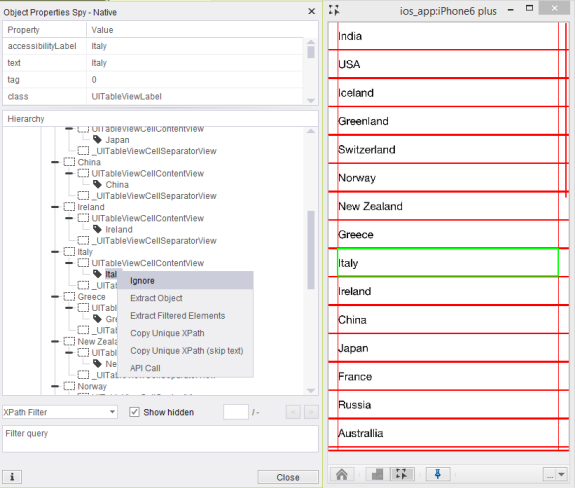

1. Click on one of the list's components.

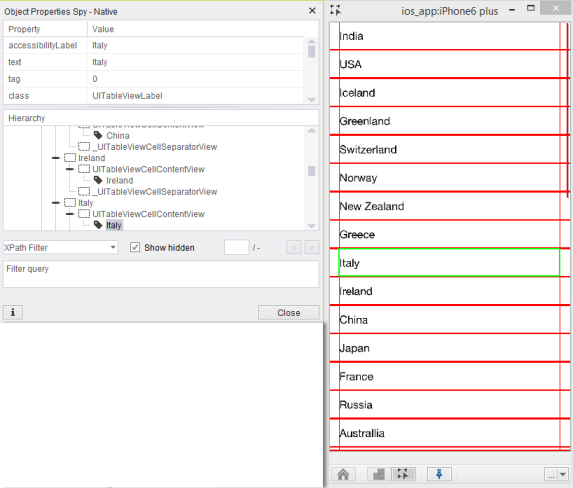

2. Right-click on the component then click on 'Ignore' - this will remove its properties from the screen, and will let you see what's behind it.

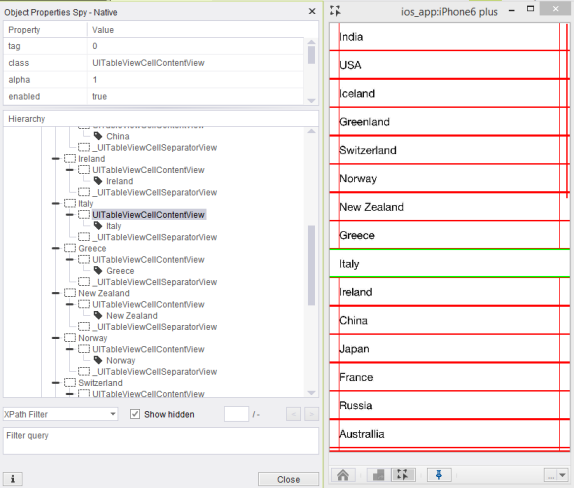

3. Click again in the same place - You will climb up the tree hierarchy of components.



   We have found the list locator identifier. We will use accessibilityLabel=conutryView as the identifier.

   Note the icon on the tree hierarchy for the list/table which you can use to get the table property.

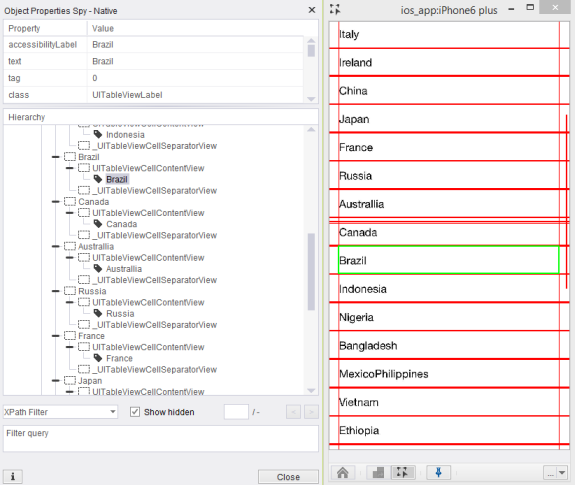

Step 5: Get the Element's Native id (The option you want to pick on the list)

In this example we will search for Brazil

Command's properties:

To find what we are looking for.

• ListLocator: “accessibilityLabel=conutryView”

• ElementLocator: “text=Brazil”

• Index: “0”

• Click: “TRUE”

It will now select 'Brazil' (If you do not want to click on it, just set the Click property to False).

Code Examples

Command is available on all code languages: UFT (QTP), TestComplete, RFT, C#, Python, Perl, etc.
